PRODUCT DESCRIPTION

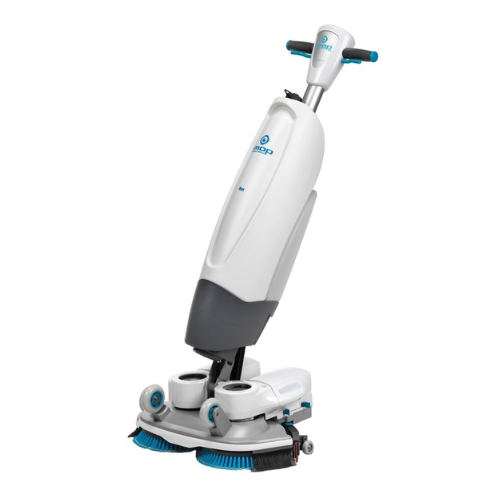

• The i-mop XL (bare unit) is the core machine unit delivered without batteries or charger
• It’s ideal for customers who already own compatible batteries (e.g
• i-Power series) or want to supply their own power modules
• It retains all the mechanical, structural and cleaning components of a full i-mop XL, minus the battery pack
• It’s ready to be paired with your chosen power source

KEY FEATURES & BENEFITS

• Same compact, maneuverable design as the full i-mop XL machine
• 360° steering hinge and foldable scrub deck for flexibility and storage
• Detachable solution and recovery tanks for easy filling and emptying
• Twin counter-rotating brushes provide uniform coverage and minimize splash
• Handle with automatic angle shut-off to protect vacuum motor when handle is too low
• Battery interface ready — compatible with i-Power battery modules (sold separately)
• Intuitive controls for independent adjustment of scrub, vacuum and water settings

FOR USE ON

• Hard floors such as tile, vinyl, sealed concrete, epoxy, terrazzo
• Commercial interiors including corridors, lobbies, offices, retail, and hospitality areas
• Spaces with obstacles or tight access where agility is required

TECHNICAL SPECIFICATIONS (MACHINE ONLY)

• Model: i-mop XL (bare unit)
• Cleaning width: 46 cm
• Brush speed: 350 rpm
• Brush down pressure: 22.5 kg
• Solution tank capacity: 4 L
• Recovery tank capacity: 6 L
• Machine weight (without batteries): ~17 kg
• Dimensions (L × W × H): 35 × 48 × 120 cm
• Noise level: 68 dB(A) (approx.)
• Power interface: Battery bay compatible with i-Power series (e.g
• i-Power 9, i-Power 14)
