PRODUCT DESCRIPTION

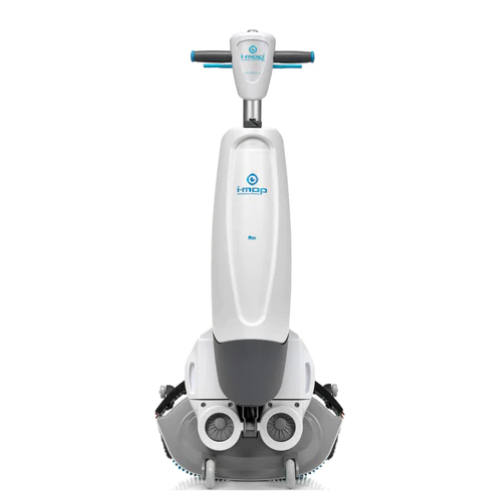

• The i-Mop XL Pro (bare unit) is the core machine module delivered without battery or charger. Ideal for users who already own compatible i-Power batteries or wish to source their own power modules.


• It retains all advanced mechanical, structural, and smart features of the full XL Pro machine, except for the battery pack and associated electronics.

KEY FEATURES & BENEFITS

• Brushless drive motor — lower maintenance and quieter performance


• i-Dose chemical dosing capability built in — accurate dosing when battery added


• Dual speed / “day mode” capability supported


• i-Link / cloud connectivity hardware onboard — for fleet monitoring when battery connected


• Antimicrobial tank materials to reduce odour and microbial growth


• 360° steering hinge for excellent manoeuvrability


• Foldable scrub deck, transport wheels for compact storage


• Automatic vacuum shutoff on low handle angle — protects vacuum system when upright or angled


• Twin counter-rotating brushes — balanced scrubbing and minimal splash

FOR USE ON

• Hard floors: tile, vinyl, sealed concrete, epoxy, terrazzo, stone, etc.


• Interior commercial environments: offices, retail, hospitality, corridors, healthcare, education


• Areas with tight spaces, under furniture, aisleways and fixtures

TECHNICAL SPECIFICATIONS (MACHINE ONLY)

• Model: i-Mop XL Pro (bare unit)


• Cleaning width / operational width: 46 cm


• Brush speed: 350 rpm


• Brush down pressure: 22.5 kg


• Solution tank capacity: 4 L


• Recovery tank capacity: 6 L


• Weight (without battery, water or additional accessories): ~19.6 kg


• Dimensions (L × W × H): 35 × 48 × 120 cm


• Noise level: ~68 dB(A)


• Power interface: Battery bay compatible with i-Power battery modules (e.g. i-Power 9, 14, 20)

PACKAGE CONTENTS (BARE UNIT)

• i-Mop XL Pro machine body (no battery module)


• Counter-rotating brush pair


• Squeegee assembly with rubber blades


• Solution and recovery tanks


• Machine handle, control assembly and wiring (battery port exposed)


• User / operation manual

WHY CHOOSE (BARE UNIT VERSION)

• Allows flexibility for organizations with existing battery inventory


• Reduces shipping cost and machine weight for battery-excluded orders


• Retains full smart and mechanical capabilities when battery is added


• Easy to integrate into existing battery ecosystems without redundancy
